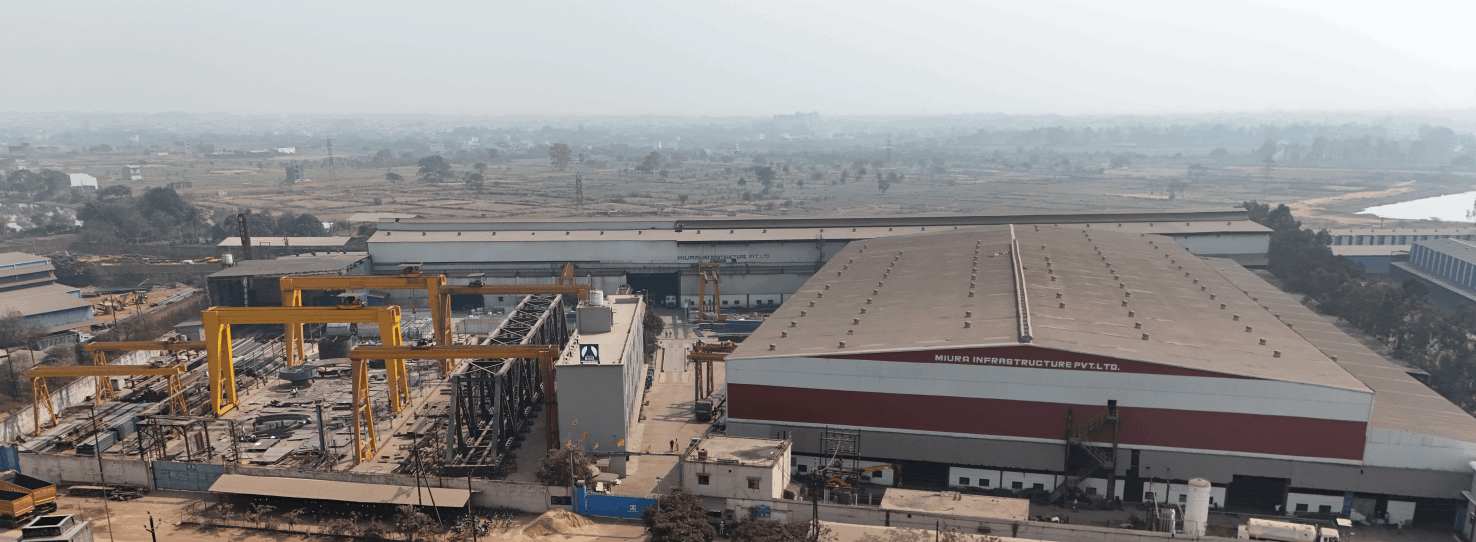

In 2010 MIPL established A State of the Art Greenfield facility in HathKhoj, Bhilai, and has continously upgraded the same till date .

MIPL is capable of executing over 1,500 MT per month fabrication of Steel Structures and the same can be scaled upto 2000 MT per month.

Today MIPL has over 2 lac square feet of covered shed under 20 overhead cranes and support facilities comprising offices, stores, canteen, temple, workers rest areas and others.

Miura Infrastructure Private Limited has adequate Financial and Technical resources to execute quality fabrication of Structures in a Cost effective and Time bound fashion. MIPL is duly registered with all statutory bodies and complies with all applicable Statutory, Financial, Enviornmental and Labour laws.



VISION STATEMENT
To continually grow, be a recognized leader and be the best in class manufacturer and solutions provider of Metal Fabricated Products and Services.

MISSION STATEMENT
MIPL is in the Fabrication and Machining business and is committed to Quality and Excellence by working to build an organization that continuously evaluates, innovates and improves various processes and consistently delivers on Quality, Safety, Reliability and Service to all its Customers, Vendors and Stakeholders.


VALUES
Integrity, Industry, Teamwork, Excellence.

MIPL is proud to be associated with the following Industries that are a part of the ambitious Make in India Campaign unveiled by the
Honourable Prime Minister Shri. Narendra Modi.

Industries Served :
THERMAL POWER, CONSTRUCTION,  MINING,
OIL AND GAS, RAILWAYS,
CHEMICALS & PETROCHEMICALS


EVOLUTION OF MIPL

FACILITIES


SHED 1

Size : 250 m x 50 m x 16 (l x b x h) 3 Bays.

Bay 1 - 25 m wide comprises of Heavy Fabrication Area (serviced by 1 x 50 MT Double Girder EOT, 2 x 20 MT Double Girder EOT cranes, 1 x 10 MT EOT Cranes).
Max Height under hook : 9.5 m.

Bay 2 - 13 m wide comprises of Heavy H Beam Line (serviced by 2 x 16 MT Double Girder EOT, cranes).

Bay 3 - 10 m wide consists of light fabrication structures (serviced by 2 x 5 Ton EOT Cranes).




SHED 2

Size : 180 m x 70.4 m x 18 (l x b x h) 5 Bays.

Bay 1 to 3 - Fabrication (6 x 20/5 MT Double Girder EOT cranes). Max. Height under Hook : 10.5 m
Houses Production, Quality offices, Sub store, Electrode baking station, FICEP CNC drill cum saw, Peddinghaus CNC drill cum bandsaw, Peddinghaus Plate Processor & CNC Cutting Facilities.

Bay 4 - Fabrication (2 x 10 MT Double Girder EOT cranes).
Max. Height under Hook : 10.5 m

Bay 5 - Offcut. Storage. 2 nos. 5 MT crane.




OPEN GANTRY AREA

100 meter length
Bay 1 : 24 m wide - 2 x 20 ton gantry cranes

Max. Height under Hook : 12 m
Bay 2 : 26 m wide - 2 x 50 ton gantry cranes
Max. Height under Hook : 14 m
Bay 3 : 18 m wide - 2 x 20 gantry ton cranes.

LOADING BAY :
100 m length x 15 m wide  2 x 20 ton
single leg gantry cranes

BEAM LINE FACILITIES

HEAVY H BEAM LINE 1

 Fully Integrated from Plate Cutting to Shot Blasting


Maximum Web Height :  200-4000mm.
Maximum Web Thickness : 6-50mm.
Maximum Flange Width :  200-1100mm.
Maximum Flange Thickness :  6-80mm.

Beam Line 2

H BEAM LINE 2

Assembly, Welding and Straightening - All in single pass


Maximum Web Height : 200-1800mm.
Maximum Web Thickness : 6-20mm.
Maximum Flange Width : 200-800mm.
Maximum Flange Thickness : 6-40mm.

HEAVY H BEAM LINE

CNC Multi Head Gas cutting
Machine

Model: GS/Z – 4000

Automatic H Beam Assemply Machine

Model: HGS – 2500

Double Cantilever Submerged Arc Welding Machine

Model: MZGT-2000

H Beam Flange Hydraulic Pressure Straightening Machine

Model: YJ-80

End Face Milling
Machine

Model : DX 1224

FICEP CNC DRILLING MACHINE - 1103 DEB

Drilling

with tool changer

Drilling Capacity : 2 horizontal & 1 vertical drilling head.
Max. Drilling Thickness : 75 mm.
Horsepower per spindle : 18
Spindle speed range (RPM) : 180 - 2,500
Maximum hole size : 40mm

Marking

Daisy wheel marking unit.

Marking Capacity : Scribing on four sides KN 80
Marking position : 36
Size of marking letter : 16*8

Sawing

Model: MZGT-2000

Maximum section depth : 40 mm.
At 90 deg - 1100x450
At 45 deg.- 700x450
At 60 deg.- 500x450

PEDDINGHAUS  - TDK 1000/9 + LC 1250
PEDDINGHAUS -  FDB 600 /3

CNC Drill Line With Horizontal Circular Saw, Drilling & Burning Line Plate Processing Machine

Peddinghaus TDK 1000/9 + LC 1250

Structural 3 Head 3 Axis CNC Drill Cum Circular Sawing Line

TDK1000/9 Drilling Capabilities :
No. Of Drill Spindles 9
Spindle Motor Power 11 HP
Drill Dia 8-40 mm
Working Height 630 mm

LC 1250 Sawing Capacity :
Maximum Beam Size - 1000 x 440 mm
At 90 deg - 1000 mm
At 45 deg - 700 mm
Saw blade diameter - 1250 mm

Signomat Marking capable of Handling Channels, H Sections, I Sections, Box Sections.

Peddinghaus FDB 600 /3

MS Plate Processing Line with 3 Head Drilling and Oxyfuel Burning Line

FDB 600 /3 Capabilities :
• High Speed Carbide Drilling
• Countersinking + Tapping
• SignoScript Carbide Marking
• Oxy-Fuel Cutting
• Roller Measurement

No. Of Drill Spindles - 3
Horsepower per spindle - 25
Spindle speed range (rpm) - 145 to 1800
Maximum Drill Dia - 8-40 mm
Max. Plate Width - 600 mm.
Max. Drilling Thickness - 50 mm.

BASIC EQUIPMENT FOR FABRICATION

Band Saw

Plate Bending Machine

Plano Miller

800 MT Hydraulic Press

Iron Worker

Plate Cutting Machine

Horizontal Boring Machine

Lathes

Column Boom Welding Machine

Rotators in Pit

SHOT BLASTING & PAINTING FACILITIES

SHOT BLAST MACHINE 1

 Trolley Type Shot Blasting Machine

- 10 Nos. blasting nozzle,
- Max job height 2400mm,
- Max job width 1400mm

Beam Line 2

SHOT BLAST MACHINE 2

Roller Type Shot Blasting Machine

- 4 Nos. blasting nozzle,
- Max job height 600 mm,
- Max job width 600 mm

SHOT BLAST BOOTHS

2 nos. Shot Blast Booths
Each of 25m x 8m x 10m size

Serviced by 50 MT trolley
Full floor recovery system & cartridge dust collectors.

PAINT BOOTHS

2 nos. Paint Booths
Each of 25m x 8m x 10m size

Serviced by 50 MT trolley
 Andrea Air Filter System.

SHOT / GRIT BOOTH

1 no. Shot/Grit Blast Booth
Size 26 m x 16m x 8m.

Serviced by 50 MT trolley

QUALITY & INSPECTION FACILITIES

ISO Certificate

QUALITY STATEMENT

At Miura Infrastructure Private Limited
we are committed to Quality and Excellence,
by continuously improving our processes and systems
meeting the highest possible technological standards,
striving to understand our customers needs,
providing competitive and cost effective solutions,
ensuring on time delivery of products and services,
and to uphold our customers expectations
of Excellence and Growth in
Quality, Safety, Reliability and Service.

We are an ISO 9001 : 2015 Certified Company and we have also been accredited for EMS ISO 14001 : 2015 & OHSAS 18001 : 2007



Inspection  & Testing Facilities :

Non Destructive Testing

In House :
DP Test: ASME SEC VIII Div-1, APP-8
UT Test : For Weld Joint ASME SEC VIII, Div-1, APP-12
             : For Plate ASTM A 435 &A578  Level A,B,C
Outsourced :
RT Test : ASME SEC VIII Div-1, APP-4.
MPI Test : ASME SEC VIII Div-1, APP-6.

Destructive Testing

Outsourced :
Mechanical : UTM
Chemical : Spectro/Wet process.

Pressure Testing


Inhouse :
Hydraulic & Pneumatic, Pressure gauge : 5 to 250 KG/CM2

Assembly & Shop Trial Can be done as per customer requirement.

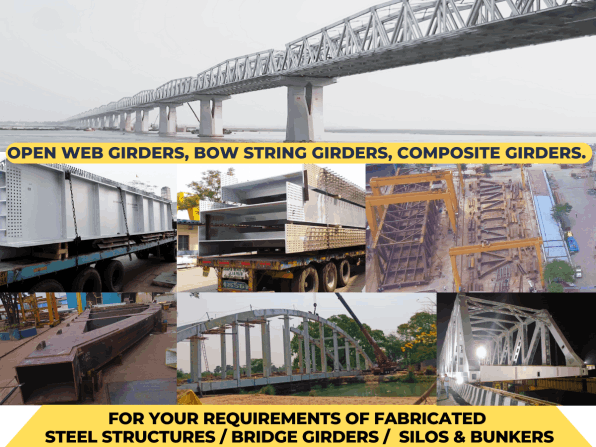

RDSO APPROVED STEEL BRIDGE GIRDER FABRICATION

RDSO - Bridges and Structures Directorate

Miura has been approved by the Indian Railways RDSO
(B&S Directorate) and has successfully completed contracts for THE fabrication of

                            (i) Road Over Bridge (ROB) Girders.
                          (ii) Foot Over Bridge (FOB )Girders.
(iii) Open Web Girders.
(iv) Bow String Girders.

 among other fabricated steel structures for various Rail and Road projects.

Shop Fabricated Steel Girders are the preferred choice of on-site project execution teams worldwide. They have a distinct advantage in terms  of  Quality and Accuracy as the Welding, Drilling and Painting processess are inhouse and continously monitored.

MIPL would like to invite and tie up with Architects, EPC companies, Infrastructure Contractors, Metro Rail Contractors for the supply of Shop Fabricated Heavy Steel Girders.

PHOTO GALLERY



Recent Export Project : Ash Handling Plant Structures supplied to Hyundai for Therma Visyas project in the Phillipines
